   Direct Burial Optical Cable

¡¡

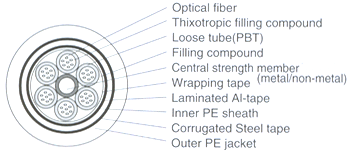

Construction




Application

Where duct  cabling cannot be satisfactorily established, subscriber network system, junction communication system

Cable Core : 2-144Core

Cable structure

SMF or MMF
Loose tube (2-12Core)
SZ stranding
Jelly field

Shield : LAPSP

Characteristics
¡¡
Item 8Core 12Core 24Core 36Core 48Core 144Core
Diameter 19mm 19mm 19mm 19mm 21mm 28mm
Weight 330kg/km 330kg/km 330kg/km 330kg/km 400kg/km 700kg/km
Max. pulling load 250kg 250kg 250kg 250kg 300kg 450kg
Min. bending radius 370mm 370mm 370mm 370mm 420mm 520mm
Max. tensile load 100kg 100kg 100kg 100kg 100kg 100kg
Standard length 2000m 2000m 2000m 2000m 2000m 2000m


¡¡
