   Flame-Retardant Optical Cable

¡¡

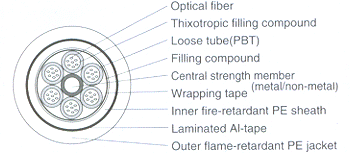

Construction




Application

Local area network, Long haul communication system, Subscriber  network system, Junction communication system

Cable Core : 2-144Core

Cable structure

SMF or MMF
Loose tube (2-12Core)
SZ stranding
Jelly field

Shield : LAP

Characteristics
¡¡
Item 8Core 12Core 24Core 36Core 48Core 144Core
Diameter 13mm 13mm 13mm 16mm 18mm 24mm
Weight 210kg/km 210kg/km 210kg/km 210kg/km 270kg/km 560kg/km
Max. pulling load 250kg 250kg 250kg 250kg 300kg 450kg
Min. bending radius 320mm 320mm 320mm 320mm 360mm 480mm
Max. tensile load 100kg 100kg 100kg 100kg 100kg 100kg
Standard length 2000m 2000m 2000m 2000m 2000m 2000m


¡¡
