   Duct Optical Cable

¡¡


Construction




Application

Local area network, Long haul communication system, Subscriber  network system, Junction communication system

Cable Core : 2-144Core

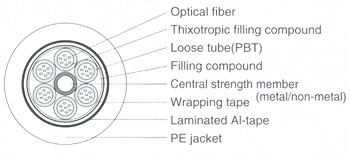

Cable structure

SMF or MMF
Loose tube (2-12Core)
SZ stranding
Jelly field

Shield : LAP

Characteristics
¡¡
Item 8Core 12Core 24Core 36Core 48Core 144Core
Diameter 13mm 13mm 13mm 13mm 15mm 20mm
Weight 150kg/km 150kg/km 150kg/km 150kg/km 200kg/km 460kg/km
Max. pulling load 250kg 250kg 250kg 250kg 300kg 450kg
Min. bending radius 240mm 240mm 240mm 240mm 300mm 430mm
Max. tensile load 100kg 100kg 100kg 100kg 100kg 100kg
Standard length 2000m 2000m 2000m 2000m 2000m 2000m


¡¡
