• A. Used Machinery Items

  • Nomenclature Stock No. Used/New Remarks
    1. Hydraulic die forging press HDFP Used
    2. Hydraulic open die forging press ODFP Used
    3. Mechanical forging press MEFP Used
    4. Mechanical stamping press MESP Used
    5. CNC turning lathe CNTL Used
    6. Large lathe LARL Used
    7. Vertical turning lathe VETL Used
    8. Cold isostatic press CIPP New
    9. Spinning machine SPMA New
    10. Flow forming machine FFMA New
  • C. Stock Machinery

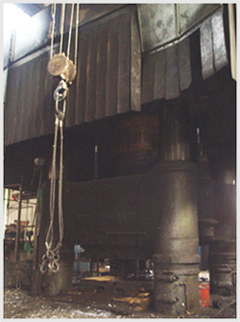

  • 1. Stock No.HDFP20101

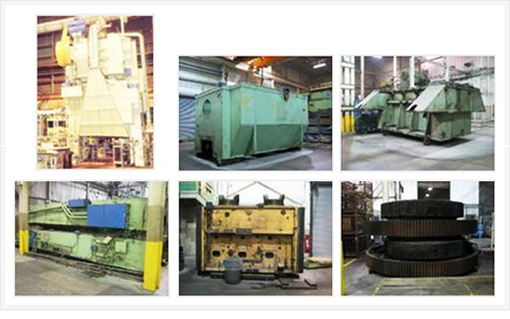

    Schloemann hydraulic forging press 3500 tons

        (New in 1970, reconditioned in 1990)
        - capacity 3500 tons
        - table size 2000 x 1500 mm
        - stroke 1000 mm
        - between columns 2200 mm

    - Price net ex site Euro 460.000,--
    - machine assembled, but more under power



  • 2. Stock No.HDFP20102

    7000ton Hydraulic Press

    ONE PREOWNED HPM 7000 TON HI-DRAW VERTICAL HYDRAULIC DOWN ACTING FOUR POST GUIDED RAM PRESS W/6300 TON CUSHION, AGE 1953


    SPECIFICATIONS :

    Capacity of Ram at 2,740 PSI7000 Tons
    Stroke of Ram36”
    Ram Cylinder Diameter74”
    Shut Height (Over Bolster) 17”
    Daylight (Over Bolster)53”
    Area of Bolster Plate
    R to L144”
    F to B72”
    Thickness24”
    Area of Bed and Ram
    R to L144”
    F to B72”
    Distance Between Posts
    R to L53 #8221;
    F to B72 #8221;
    Total Die Lifting and Stripping Capacity @ 1500 PSI 65 Tons
    Floor to Top of Bolster36”
    Speeds
    Fast Advance238 IPM
    Pressing17.5 IPM
    Return 238 IPM
    Cushion Pressure Infinitely Variable630-6300 Tons
    Cushion Ejection Capacity @ 750 PSI29 Tons
    Cushion Stroke 14”
    Oil Reservoir (Approx) 2250 Gal
    Motor-Main (2)200 HP
    Voltage4160 Volts
    Approx Weight w/Rolling Bolster1,200,000 lbs
    Approx Overall Dimensions
    R to L534”
    F to B204”
    Above Floor325”

    EQUIPPED WITH :

    (2) Moving bolster with R to L movement and F to B movement when out of press
    10 T-Slots running R to L 30” deep right hand and left hand side of ram
    Bolster furnished with 247 pressure pin holes for cushion
    Press furnished with oilgear pumps and equipment

    CONDITION : Very Good to Excellent. Was Remanufactured in 1980. Last used as a rubber pad forming press in an aerospace plant. Well maintained press.

    LOCATION : USA
    PRICE…………………AS INSPECTED/ON LOCATION………$OFFERS

  • 3. Stock No. MEFP20103

    2500 TON BLISS SE2-2500-132X66 MECHANICAL FORGING PRESS

    PRELIMINARY SPECIFICATIONS

    NEW IN 1980
    MODEL SE2-2500-132X66
    TWO POINT ECEENTRIC-GEARED STRAIGHT SIDE
    MECHANICAL FORGING PRESS

    2500 TON CAPACITY
    M60" STROKE
    105" SHUT HEIGHT
    6" ADJUSTMENT
    132" X 66" BED AREA
    132" X 66" RAM AREA

    SPEED :
    8 SPM CONTINUOUS SPEED
    4 SPM WORKING SPEED


    EQUIPPED WITH :
    300 HP MOTOR
     - 1150 RPM
    CONTROLS
    AIR CLUTCH & BRAKE
    AIR COUNTER BALANCE
    INCHING
    DIE LUBE SPRAYER
    AUTO LUBE SYSTEM
    100 TON EJECTOR
    12" WIDE SCRAP CONVEYOR
    3 STATIONS
    60"W X 96"H WINDOWS

    APPROX O.A. WEIGHT: 420ton
    APPROX O.A. DIMENSIONS: 39'H ABOVE FLOOR / 10' BELOW FLOOR

    (2) PRESSES AVAILABLE

    THIS IS A RARE FIND - CONTACT US TODAY! Price on request

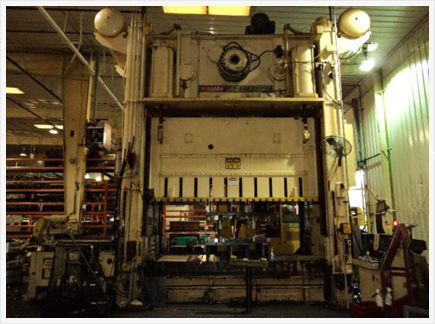

  • 4. Stock No. MESP20104

    800ton 156"x60"Niagara Used Stamping Press

    Year-1974
    Condition-Good
    Specification
     - capacity: 800ton
     - bed area: 156"x60"
     - stroke: 18"
     - adjustment: 18"
     - shut height: 50"
     - spm: 12-24
     - windows: 42"widex46"high
     - overall height above floor: 273"
     - pit required: 60"
     - floor space: 204"x130"
    Location- Indiana,US
     - Price-$295,000 preior to removal

  • 5. Stock No.ODFP20105

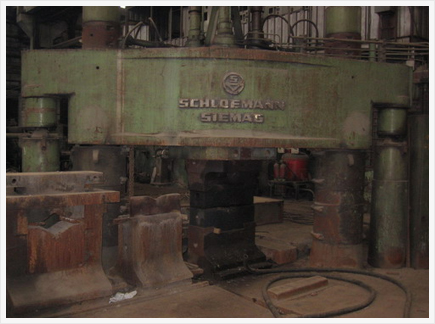

    1000ton Open die forging press

    1000TON SCHILOEMANN SIEMAG OPEN DIE, HYDRAULIC FORGING PRESS [109687]

    2 POST FRAME
    WORKING PRESSURE..... 315KP/CM2
    PRESSING CAPACITY..... 1000MP
    PETURNING CAPACITY..... 240MP
    PISTON STROKE.....800MM
    DAYLITE(MAX DISTANCE BETWEEN BED & RAM).....2250MM
    DISTANCE BETWEEN POST(BED & RAM AREA).2000X1440MM


    SPEEDS :

    APPROACH SPEED, CAPACITY OF PRESS.....250MM/S
    MAX.PRESSING SPEED.....110MM/S
    RETURN SPEED.....250MM/S


    HIGH PRESSURE :

    (1) HIGH PRESSURE OIL PUMP DRIVE FOR DIRECT START OF THE PRESS, CONSISTING OF:
    (3) MAIN HYDRAULIC, HIGH PRESSURE OIL PUMPS
    MAKE WEPUKO
    TYPE RADIAL PISTON PUMP #RP-315-500, ADJUSTABLE
    FLOW VOLUME...200KP/CM2 - 715 L/MIN.(EACH PUMP)
    FLOW VOLUME...315KP/CM2 - 450 L/MIN.(EACH PUMP)
    SPEED.....750RPM(EACH PUMP)
    MOTOR DRIVE..260KW X(3)

    EACH OIL PUMP EQUIPPED WITH :

    (1) LUBRICANT PUMP
    (1) PRESSURE SENSOR
    (1) ROTATING DEVICE
    (1) SAFERY VALVE
    (1) ONE WAY VALVE
    (1) COOLING PUMP
    WORKING PRESSURE.. 4KP/CM2
    CONVEYING CURRENT..1300 L/MIN
    MOTOR DRIVE CAPACITY.. 22KW
    REVOLUTIONS/MIN..3000 TURNS/MIN


    LOW PRESSURE :

    (1) LOW PRESSURE OIL DELIVERY SYSTEM OF THE PRESS, CONSISTING OF :
    (1) LOW PRESSURE OIL PUMP
    PRESSURE CAPACITY... 100KP/CM2
    CONVEYING CURRENT... 180L/MIN
    CAOACITY NEEDED FOR SHAFT. 37KW
    REVOLUTIONS/MINUTE... 1500 TURNS/MIN


    EQUIPPED WITH :

    (1) TURN VALVE, ELECTRICAL CONTROLLED
    (1) PRESSURE SWITCH
    (1) SAFETY CALVE WITH NON-RETURN VALVE FOR PUMP CIRCULATION
    (1) SAFERY VALVE FOR WORK CIRCULATION


    PRESENTLY EQUIPPED WITH :

    DANGO& DIENENTHAL FORGING MANIPULATOR & ROTATION 360o
    SERIAL NO. 1007-8005
    MANUFACTURING DATE.. 10/07/1978
    CAPACITY.2500KG
    RAIL TYPE
    HYDRAULIC OPERTION
    HYDRAULIC LATERAL MOVEMENT
    HYDRAULIC ACTUATION OF GRIPPER TONG
    HYDRAULIC ACTUATION OF GRIPPER TONG ELEVATION

  • 6. Stock No. MESP20106

    ERFURT Presses, Straight Side
    1400 Ton Erfurt Eccentric Geared Straight Side

    4-Point Press
    Model: S4-1400-156-98
    Tonnage Capacity ..................... 1400 Ton
    Bolster (T-Slotted) .................. 98" x 156"(3962x2489mm)
    Bed and Ram .......................... 84" x 132"
    Stroke Of Slide ...................... 24"
    Shut Height (SDAU) Over 9" Bolster ... 72"
    Windows .............................. 63" x 70"H

    EQUIPPED WITH :

    Toledo "Press Watch" Monitor
    Shadow V Light Curtains
    Free Standing Operator Console
    Inspection Under Power in Ontario Canada Plant

  • 7. Stock No. MESP20107

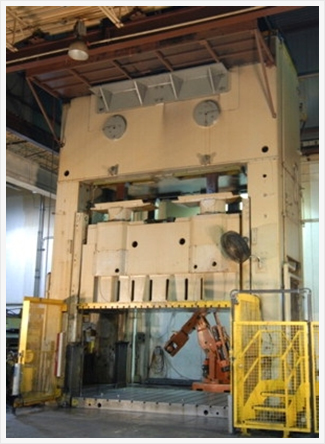

    MODEL S4-1000-180-84
    4 POINT PRESS STRAIGHT SIDE DOUBLE CRANK

    SINGLE ACTION
    1000 TON CAPACITY
    33" STROKE
    91" SHUT HEIGHT
    11.5" ADJUSTMENT
    180" X 84" BED AREA
    10 SPM
    28.5" FLOOR TO TOP OF BOLSTER

    EQUIPPED WITH :

    150 HP MAIN MOTOR
    MOTOR & CONTROLS
    AIR CLUTCH & BRAKE
    AIR COUNTER BALANCE
    FRONT TO BACK ROLLING BOLSTER
    (2) 57"W X 29"H WINDOWS
    TONNAGE MONITOR
    STROKE INDICATOR
    SIEMENS SIMATIC TOUCH CONTROL
    ALL NEW ELECTRICS IN 2006
    DUAL PALM CONTROLS
    12" T-SLOTTED BOLSTER
    T-SLOTTED RAM
    4-POINT GIBBING
    SET-UP FOR CUSHIONS
     - CUSHIONS AVAILABLE THROUGH 3RD PARTIES


    ELECTRICAL REQUIREMENTS :

    575 VOLT

    APPROX O.A. WEIGHT : 658,000LBS APPROX O.A. DIMENSIONS: 324"LR X 240"FB X 37'H
     - 27'10"H ABOVE FLOOR
     - 9'9" BELOW FLOOR
    APPROX O.A. PIT DIMENSIONS: 324"LR X 198"FB X 118"D

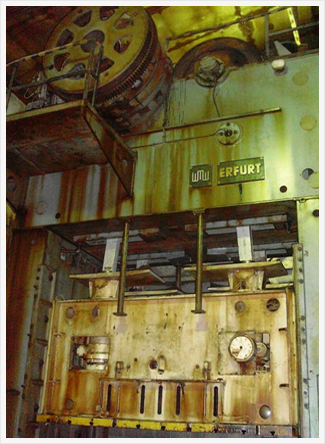

  • 8. Stock No. MESP20108

    MECHANICAL-DOUBLE SIDE-SIMPLE ACTION-2 POINT-PRE,
    -FORMING-TRIMMING-SHEET STAMPING PRESS
    WITH FRONT MOVING BED, used

    Manufacturer : ERFURT
    Type: PKZZ IV 500.1 FS
    YOM: 1975
    Capacity: 500 ton.
    Bed: 2800 x 1800 mm.
    Ram stroke: 500 mm.
    Ram ajustment: 500 mm.
    Price: EUR 107.500,- net FCA ,,Port St. Peterburg,

  • 9. Stock No. MESP20109

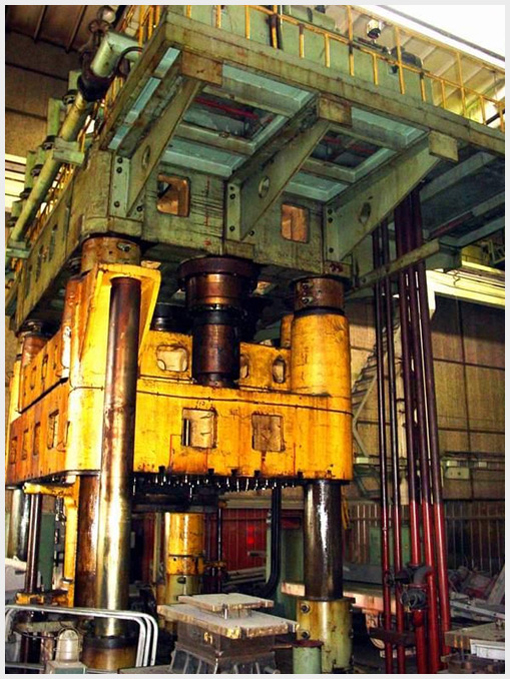

  • 2600ton Double-action hydraulic press

    - Double-action hydraulic press P236B

    - Capacity (tons) -2600 (1000 + 1600)

    - Dimensions of the pull-out Double-action hydraulic press P236B

    - Capacity (tons) - 2600(1000+1600)

    - Dimensions of the pull-out table - 3550 x 3550mmMade in Russia (Riazan 1987)

    - Good conditions,

    - best prices.200 used machines form Lithuania

  • 10. Stock No.201010

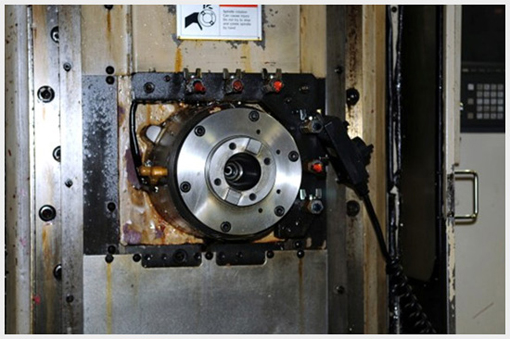

  • CNC horizontal machining center

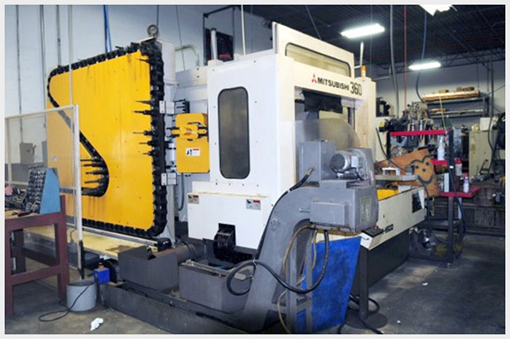

    Mitsubishi M-H50D CNC Horizontal Machining Center

    Age: 1996

    Model: Diacenter M-H50D


    SPECIFICATIONS :

    - X-Axis Travel ......................... 719 mm

    - Y-Axis Travel ......................... 630 mm

    - Z-Axis Travel ......................... 630 mm

    - Spindle Center to Pallet Surace ....... 51 mm-681 mm

    - Spindle End to Pallet Center .......... 150 mm-780 mm

    - Pallet Size ........................... 500 mm x 500 mm

    - Pallet Load Capacity .................. 799 KG.

    - Pallet Indexing (360 Positions) ....... 1 Degree

    - Rapid Traverse, X & Y Axes ............ 20000 mm/min

    - Rapid Traverse, Z-Axis ................ 15001 mm/min

    - Cutting Feedrate, XYZ Axes ............ .04-5004 mm/min

    - Spindle Drive Motor ................... 15 KW

    - Spindle Speeds ........................ 30-4000 RPM

    - Spindle Taper ......................... CAT 50

    - Tool Changer .......................... 100 ATC

    - Max Tool Size (Adjacent Pots Empty) ... 239 mm x 498 mm

    - Max Tool Dia. (Adjacent Pots Full) .... 109 mm

    - Max Tool Weight ....................... 15 KG.

    - Machine Dimensions .................... 4369 mmx5842 mmx12

    - Machine Weight ........................ 10894 KG.


    EQUIPPED WITH :

    - Fanuc 16M CNC Control with CRT, RS-232

    - 100-Position Automatic Tool Changer

    - Dual 508 mm Pallets with Auto Pallet Changer

    - 60 PSI Thru-Spindle Coolant

    - Chip Conveyor with Dual-Auger Feed

    - LOCATION: In Plant Under Power

    - Price: $39,500.00


  • 11. Stock No.201011

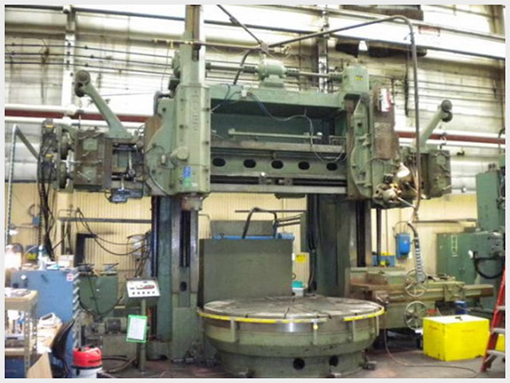

  • Vertical boring machine

    2540 mm Niles Vertical Boring Mill

    Age 1953

    Model: F100


    (1) Right Hand Swiveling 5-Position Turret

    (1) Left Hand Swiveling Ram

    (1) Side Head


    - Table Diameter ........................ 2540 mm

    - Maximum Swing ......................... 2642 mm

    - Maximum Height Under Rail ............. 2159 mm

    - Ram Stroke ............................ 1524 mm

    - Turret Stroke ......................... 610 mm

    - Table Speeds (16) ..................... 1.4-47.7 RPM

    - Feeds (16) ............................ .003-28 mm/rev

    - Floor Space L x D ..................... 4420 mm x 7315 mm

    - Height ................................ 5791 mm


    EQUIPPED WITH :

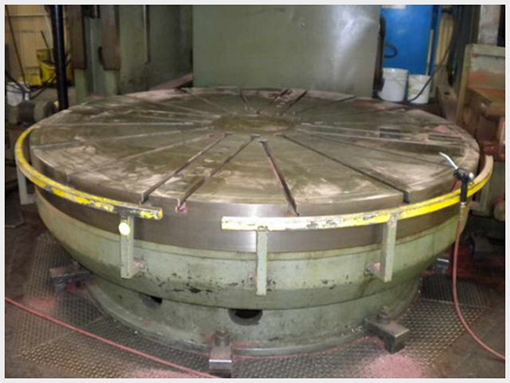

    - 2540 mm T-Slotted Table

    - Pendent Controls

    - Right Hand Swiveling Turret

    - Left Hand Swiveling Ram

    - Side Head

    - Duplimatic E360-Ic Tracer

    - 45 KW Table Drive 220/440V

    - 480/3/60 Electrics


    Inspect Under Power In Aerospace Facility!

    Price: $79,500.00 Including Disassembly & Loading



  • 12. Stock No.SPMA201012

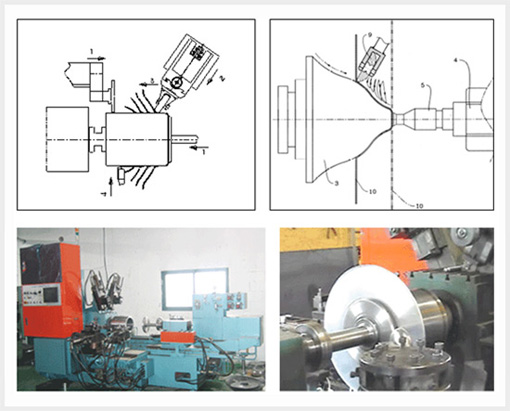

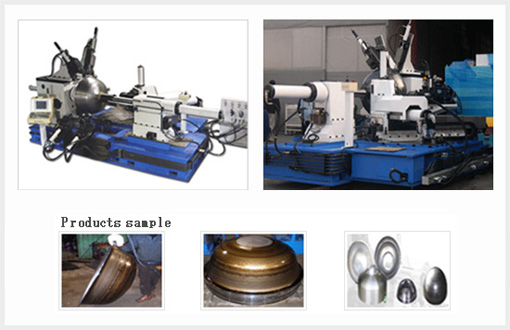

  • CNC Spinning machine

    Nomenclature Specification(mm) Remarks
    CAPACITY Center height 900
    Working diameter 1700
    Longitudinal slide travel 1150
    Radial Slide travel 590
    FEED POWER Axial feed power 18Ton
    Radial feed power 18Ton
    MOTOR POWER Main spindle motor 50Hp
    ROLLER 2Roller
    Number of control axis 2 Axis Servo control
    CO TR L 방식 CNC PC-NC
    GEAR REDUCTION 120~760R.P.M 4step


    Necking machine


    Automatic spinning machine

  • 13. Stock No.FFME 201013

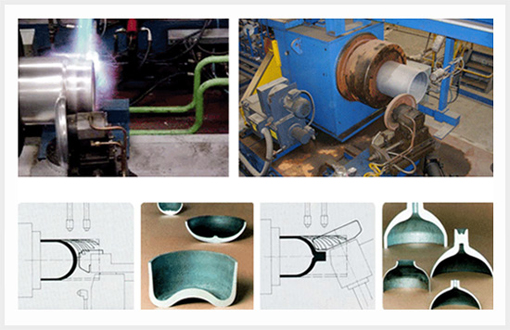

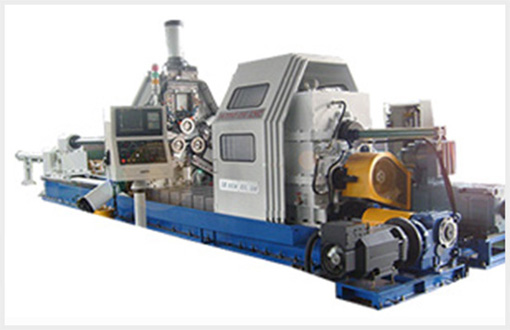

  • Flow-forming machine

    MACHINE SPECIFICATION (Flow-Forming Machine Ⅱ)

    Classification Flow-Forming Remark
    CAPACITY Center Height Ø 785 mm
    Working Diameter Ø 100 ~ 600
    Distance Between Center 6,500 mm
    Transvers Slide Travel 250 mm
    Longitudinal Slide Travel 3,000 mm
    Tailstock Stroke 4,000 mm
    Ejector Stroke 1,000 mm
    FEED POWER Axis Feed Axial 1.1 mm/min
    Radial 18 m/min
    Axial Feed Power 500 kN × 3
    Radial Feed Power 500 kN
    Tailstock Feed Power 110 kN
    MOTOR POWER Spindle Drive Motor 150 kN D.C
    Hydraulic Unit 45 KW × 45 KW
    Saddle 45 KW SERVO MOTOR
    OVERALL POWER
    REQUIREMENT
    Electric 440 V
    Air
    MEASUREMENT Overall Machine Height 2,661 mm
    Floor Space Requirement(L×W) 11,772 × 3,435 mm

    Flow-Forming Machine Ⅱ

  • 14. Stock No. CIPP201014

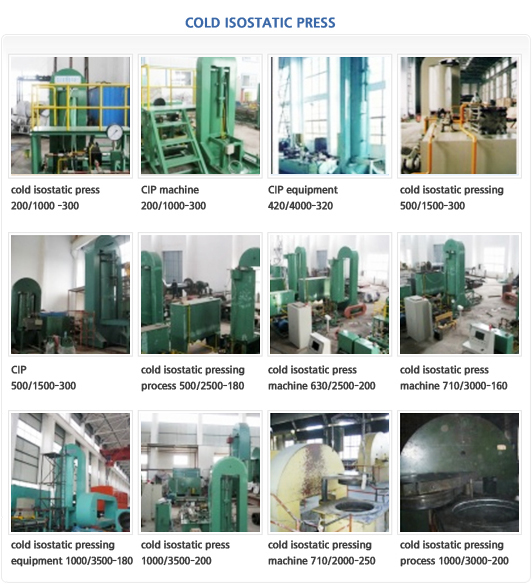

    Cold isostatic press



    - Capacity :∮200 - ∮1500mm out diameter
                    500 - 2500mm lenght
    - Pressure : --3000kg/cm²
    - Wire winding vessel and yoke
    - PLC control

Copyright(c)since 2003 Reliance Corp. All right reserved
1304, Kumkwang Benesta,1149-2, Jung-Dong, Wonmi-Gu,
Bucheon-city, Gyeonggi-do 420-020, KOREA
